PCWINMAX New H110A Socket 1151 GDDR4 Max 64GB Micro ATX Original H110 Chipset Desktop Motherboard Support 6/7/8/9 Gen Processors

محل منبع چین
نام تجاری PCWINMAX
گواهی CE FCC
شماره مدل H110
مقدار حداقل تعداد سفارش 2
قیمت 45.99~55$
زمان تحویل 3 تا 7 روز کاری
شرایط پرداخت L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام
قابلیت ارائه 100 قطعه 5 روزه
جزئیات محصول
پورت ها وای فای، SATA، DVI، PCI-Express X16، USB 2.0، M.2، USB 3 نوع CPU Core I7/Core I5/Core I3/Pentium/Celeron
حداکثر ظرفیت رام 32 گیگابایت برنامه رومیزی/خانه/ایستگاه کاری
تولید کننده چیپست این کشور نوع سوکت سوکت 1151
فاکتور فرم میکرو ATX نوع حافظه DDR4
نوع کارت گرافیک پشتیبانی یکپارچه از CPU رابط هارد دیسک SATA
پیام بگذارید
توضیحات محصول

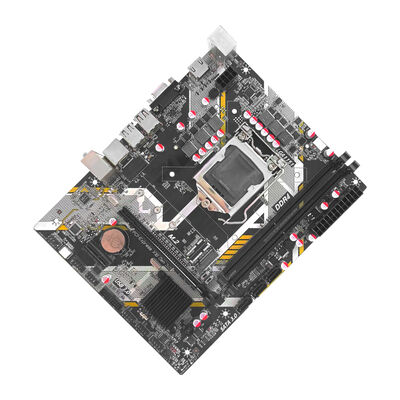

PCWINMAX New H110A Socket 1151 GDDR4 Max 64GB Micro ATX Original H110 Chipset Desktop Motherboard Support 6/7/8/9 Gen Processors


Description:

The H110A Socket 1151 DDR4 Max 64GB Micro ATX motherboard is a versatile and reliable solution for building office PCs, home systems, or light gaming rigs. Supporting Intel 6th to 9th generation processors, it provides a stable platform for a wide range of applications. With support for up to 64GB of DDR4 memory, this motherboard ensures smooth multitasking and efficient performance for demanding tasks. Its Micro ATX form factor makes it compatible with compact cases while maintaining essential connectivity options, including multiple PCIe slots and storage interfaces.


Features:

1. Socket 1151: Compatible with Intel 6th to 9th generation processors
2. DDR4 Memory Support: Up to 64GB for multitasking and high-performance applications
3. Micro ATX Form Factor: Ideal for compact PC builds without sacrificing features
4. Multiple PCIe Slots: Supports graphics cards, sound cards, and other expansion devices
5. Storage Options: Supports SATA and M.2 drives for fast storage performance
6. Integrated Audio and Ethernet: Provides HD audio and reliable network connectivity
7. Power-Efficient Design: Delivers stable performance while minimizing energy consumption


Parameter:

Processor (CPU)

Support for Inte® Core™ i7 processors/Inte® Core™ i5 processors/ Inte® Core™ i3 processors

/Inte® Pentium® processors/Intel® Celeron® processors in the LGA1151 package.

L3 cache varies with CPU.

Chipset
Inte® H110 Express Chipset
Memory

2 x 1.35V DDR4 DIMM Sockets Supporting up to 64 GB of System Memory,

Support for DDR4 2133/2400 MHz Memory Modules.

Slots

- 1 * PCI Express x16 Slot

- 1 * PCI Express x1 Slot
- 1 * PCI Slot

Storage
- 4 * Serial ATA 3.0 devices
Internal I/O Connectors

- 1 * 24-pin ATX Power Connector

- 1 * 4-pin ATX 12V Power Connector

- 2 * USB Connector Support Additional 4 USB Ports

- 1 * LPC_DEBUG Connector

- 1 * Front Panel Audio Connector

- 1 * System Panel Connector

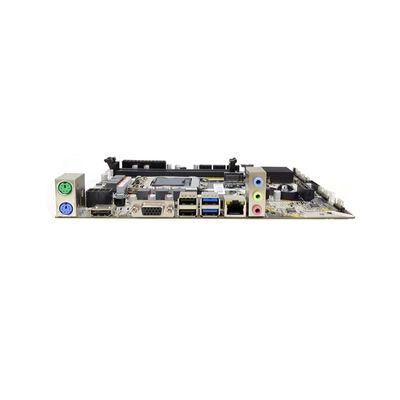

Back Panel I/O Ports

- 1 * PS/2 Mouse & Keyboard

- 1 * VGA

- 1 * HD

- 1 * LPT

- 2 * USB 3.0 and 2* USB 2.0

- 1 * LAN Port (RJ45)

- 3 * Audio Jacks

LAN
Realtek® GbE LAN Chip (10/100/1000 Mbit)
Audio
Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out
Form Factor
- Micro ATX (225*175 mm)
Accessories

- User Manual

- Drive CD

- I/O Panel


PCWINMAX New H110A Socket 1151 GDDR4 Max 64GB Micro ATX Original H110 Chipset Desktop Motherboard Support 6/7/8/9 Gen Processors 0


Quality Assurance:

To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.


Hot product


PCWINMAX New H110A Socket 1151 GDDR4 Max 64GB Micro ATX Original H110 Chipset Desktop Motherboard Support 6/7/8/9 Gen Processors 1


Our advantages:

Superior Quality and Customization
As an original manufacturer with over 20 years of industry experience, we provide premium quality products that can be fully customized to your exact specifications.
Competitive Pricing
By working directly with the manufacturer, you get the most favorable pricing on unique, tailored solutions without any middleman markups.
Fast Turnaround Time
We pride ourselves on our ability to deliver finished products within 3-7 working days to meet your rapid deployment needs.
Global Reach
With happy customers from over 200 countries, we have the proven capability to reliably ship anywhere in the world.
Trust Our Experience and Dedication
With two decades of focus in this market, we have the proven track record required to expertly guarantee the purchase well.


Related product introduction:

RX580,RX550,RX560.RX570
GT210,GT610,GT640,GT710,GT705,GT1030,GTX750,GTX750TI,GTX1050,GTX1050TI,GTX1060,GTX1660,GTX1650,GTX1070,GTX1080

Mining graphic card/ram/motherboard/ssd/hdd/cpu
RTX graphic card and so on


FAQ:

1.Do your products come with a warranty?
Yes, all our products are backed by a comprehensive warranty and professional after-sales support service. Contact us for any issues or questions.
2.How do you ensure quality?
We have rigorous quality control including pre-production samples, final inspections, and testing before any product ships to customers. This guarantees you receive electronics that work flawlessly.
3.What products are available?
We offer a wide range of computer components including graphics cards, motherboards, RAM, SSDs, HDDs, CPUs, and more. Ask our sales team about our full catalog.
4.What additional services are offered?
Samples - Test out products before purchase
Daily price lists - Stay updated on the latest pricing
Technical support - Our experts are here to help
